保发（bosfa）卷绕式阀控密封铅酸蓄电池通过采用具有极高析氢过电位的合金通过特殊工艺制造板栅，同时对正负极活性物质量的合理匹配等工艺措施，使得负极上发生的析氢过程得以最大限度地受到抑制，同时正极因过充电所产生的氧气通过隔膜到达负极，并与负极上的铅发生反应，生成水，这样便使得电池内部气体的再复合，防止失水，实现免维护。
相对于平板电池而言，卷绕式电池采用只有1mm左右的极板高压卷绕而成,通过特殊的工艺手段使得电池具有了许多特点：
1．超强的高倍率放电能力，最大放电倍率为18C10。
2．卓越的高低温性能，可在-55℃~75℃下工作。
3．平稳的高输出电压，更高的能量密度。
4．结构坚固，具有优异的抗震性能。
5．无游离电解液，可任意方向放置工作。
6．可以进行快速充电，40分钟内可充入95％以上的电量。
7．超长寿命，设计浮充寿命可达8年以上。
8．极高的耐小电流深放电能力
主要应用领域
仪器仪表、电动工具、健身器材、医疗器械、太阳能灯具、输送电设备
各种备用电源 、混合电动车及汽车起动
Brief Introduction about Spiral Battery
The bosfa application of the alloy that can effectively reduce the
release of hydrogen, the special technique in manufacturing
grid, and the appropriate match of active materials of both
negative plates and positive plates, all these enable spiral
valve-regulated sealed lead-acid battery (SPB), greatly restrain
the release of hydrogen from negative plates, at the same time
the generated oxygen, due to overcharge of positive plates,
arrive at negative plates through the diaphragm and compose with
lead in the negative, thus enable the recombination of gas
inside of the battery and prevent the case of water loss so that
water addition is free.
Comparing to flat battery, the spiral battery is made at high
pressure through the spiral of plates of only 1mm.Special
technique fashion characterizes the battery in many aspects:
1. Superior high rate discharge capability, with max.
discharge rate of 18C10
2. Outstanding performance of high/low temperature, able to
work under the temperature of -55℃～75℃
3. Steady high work voltage, higher power density
4. Robust structure have excellent performance of shock
resistance
5. No floating electrolyte, able to placed at any direction
6. Fast chargeable charge is possible, 95% plus capacity
may be charged within 40 minutes
7. Super service life, design float charging service life
is more than 8 years
8. Excellent deep discharge performances in low current
Main application:
Instrument, electric tools, physical exercise devices, medical
devices, solar light, electricity transferring equipment,
standby power supply, Hybrid electric car and the start of the
car
......

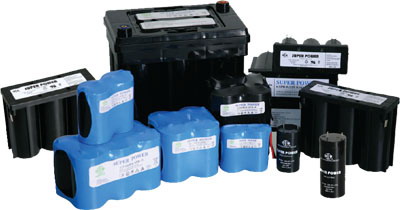

bosfa SPB系列纯铅卷绕蓄电池整体电池规格表
|
型号
type
|
编号
Serial
Number
|
额定电压
(V)
Nominal voltage
|
额定容量
Capacity
(C10Ah)
|
外形尺寸(mm)Dimensions
|
重量
Weight
(kg)
|
|
|||
|
长
Length
|
宽
width
|
高
Height
|
总高
Total height
|
||||||
|
SPB-2.5
|
S-001
|
2
|
2.5
|
直径Diameter 34.5
|
61.2
|
68.1
|
0.15
|
|
|
|
SPB-5
|
S-002
|
2
|
5
|
直径Diameter 44.5
|
73
|
81.5
|
0.29
|
||
|
SPB-8
|
S-003
|
2
|
8
|
直径Diameter 44.5
|
100
|
108
|
0.45
|
||
|
3-SPB-2.5
|
M-001
|
6
|
2.5
|
110
|
44
|
70
|
70
|
0.45
|
 |
|
3-SPB-8
|
M-002
|
6
|
8
|
135
|
51
|
100
|
100
|
1.4
|
|
|
6-SPB-25
|
M-003
|
12
|
25
|
203
|
139
|
164
|
169
|
9
|
 |
|
6-SPB-30
|
M-004
|
12
|
30
|
203
|
139
|
164
|
169
|
9.6
|
|
|
6-SPB-50
|
M-005
|
12
|
50
|
254
|
173
|
199
|
205
|
19.2
|
|
|
6-SPB-60
|
M-006
|
12
|
60
|
254
|
173
|
199
|
205
|
20.4
|
|
SPB系列纯铅卷绕蓄电池组合电池规格表
|
型号
type
|
编号
Serial
Number
|
额定电压
(V)
Nominal voltage
|
额定容量
Capacity
(C10Ah)
|
外形尺寸(mm)Dimensions
|
重量
Weight
(kg)
|
|
|||
|
长
Length
|
宽
width
|
高
Height
|
总高
Total height
|
||||||
|
2-SPB-2.5
|
S-004
|
4
|
2.5
|
69
|
34.5
|
61.2
|
66
|
0.30
|
 |
|
2-SPB-5
|
S-005
|
4
|
5
|
89
|
44.5
|
73
|
80
|
0.63
|
|
|
2-SPB-8
|
S-006
|
4
|
8
|
89
|
44.5
|
100
|
105
|
0.95
|
|
|
3-SPB-2.5
|
S-007
|
6
|
2.5
|
104
|
34.5
|
61.2
|
66
|
0.44
|
 |
|
3-SPB-5
|
S-008
|
6
|
5
|
134
|
44.5
|
73
|
80
|
0.91
|
|
|
3-SPB-8
|
S-009
|
6
|
8
|
134
|
44.5
|
100
|
105
|
1.43
|
|
|
4-SPB-2.5
|
S-010
|
8
|
2.5
|
69
|
69
|
61.2
|
66
|
0.59
|
 |
|
4-SPB-5
|
S-011
|
8
|
5
|
89
|
89
|
73
|
80
|
1.2
|
|
|
4-SPB-8
|
S-012
|
8
|
8
|
89
|
89
|
100
|
105
|
1.9
|
|
|
6-SPB-2.5
|
S-013
|
12
|
2.5
|
104
|
69
|
61.2
|
66
|
0.9
|
 |
|
6-SPB-5
|
S-014
|
12
|
5
|
134
|
89
|
73
|
80
|
1.8
|
|
|
6-SPB-8
|
S-015
|
12
|
8
|
134
|
89
|
100
|
105
|
2.8
|
|
|
6-SPB-2.5
|
M-007
|
12
|
2.5
|
110
|
88
|
70
|
70
|
0.9
|
 |
|
6-SPB-8
|
M-008
|
12
|
8
|
135
|
102
|
100
|
100
|
2.7
|
|
|
6-SPB-16
|
M-009
|
12
|
16
|
135
|
102
|
202
|
202
|
5.6
|
 |
